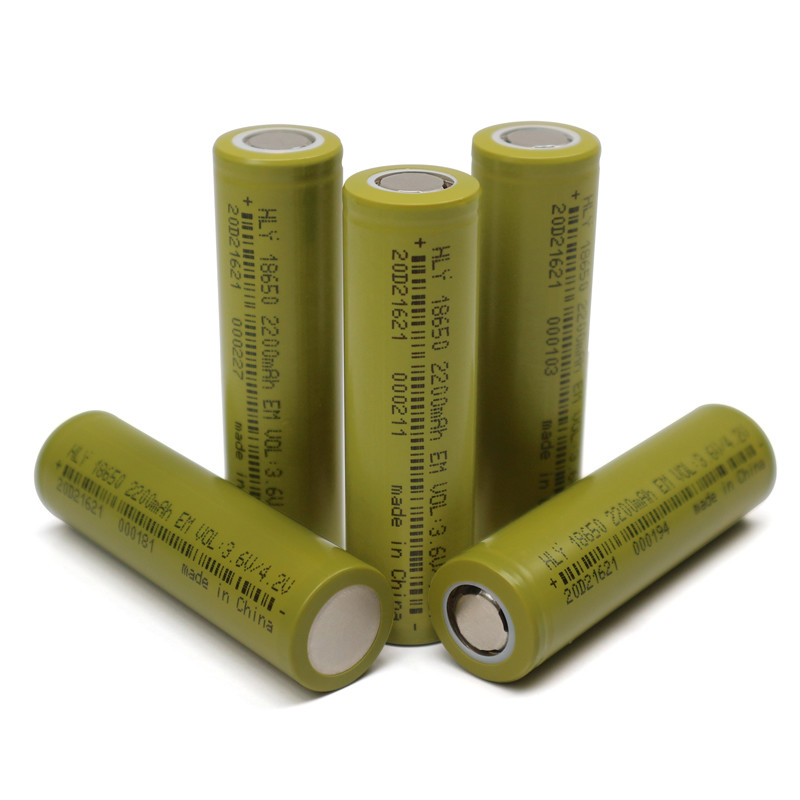

3.6V 2200mah 18650 Cylindrical Lithium Ion Battery Cells For
Electric Power Products
PRODUCT DESCRIPTION
Battery Characteristic:
1. Light, small, high energy density and long cycle life.
2. High safety, meeting international safety standards such as UL,
CE, EN62133, etc.
3. Wide operating temperature range, stable performance under high
and low temperature.
4. A variety of cell types for choice, suitable for many different
product fields.
5. Independent development and design, can be customized as per
customers' producy requirements.
Application:
| Application field of lithium battery |
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric special vehicle: Electric golf car, electric sightseeing
car, electric engineering car, electric sweeper, electric forklift,
police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power
station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc | Power supply for large ships (airline, war ship, large cruise ship,
cargo ship, etc.) |
Battery-operated motor cycle;
Electric motorcycle;
E-scooter | Grid peak regulation power supply | Communication building 336V HVDC data center backup power | Electric model, airplane model | Power supply for aircraft (power supply for large civil aircraft,
commercial aircraft, helicopter, fighter aircraft and other flight
instruments) |
EV;
Electric vehicles;
Cell-driven vehicles
(Hybrid and pure) | Special uninterruptible power supply system for power | Renewable energy (lithium iron battery + photovoltaic +...) Base
station power supply | Electric robot; Electromotive robot | Space vehicle power supply system (space shuttle, satellite,
rocket, missile, etc.) |
Electric bus/Medium bus
(Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment
(tank, armored vehicle, military large armored vehicle, civil large
excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy | 2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 1C (2200mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body
temperature. Charging and discharging at these conditions will
shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
Why choose us?
1. We founded in 2013, have about 10 years experience in the field
of Lithium Ion Battery.
2. We have 400 professsional workers and 20 R&D engineers.
3. We have an industrial park of 23,000 square meters and more than
100 patented technologies and more than 200 sets of high-precision
instruments.
4. We got 8 China excellent patent awards.
5. We cooperate with Chinese Academy of Sciences(CAS) to research
and develop new product Sodium Ion(Na+).
| Frequently asked questions |
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650
and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for
neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery
is 192 pcs. |
| 3 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7
working days. If OEM of bulk orders, it would be about 7~15 days. |
| 4 | How do you ship the goods and how long does it take to arrive? | DHL, UPS, FedEx or TNT for samples. Shipping time depends on the
way you choose. Airline and sea shipping also optional. |
| 5 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the
rest paid before shipping. |
