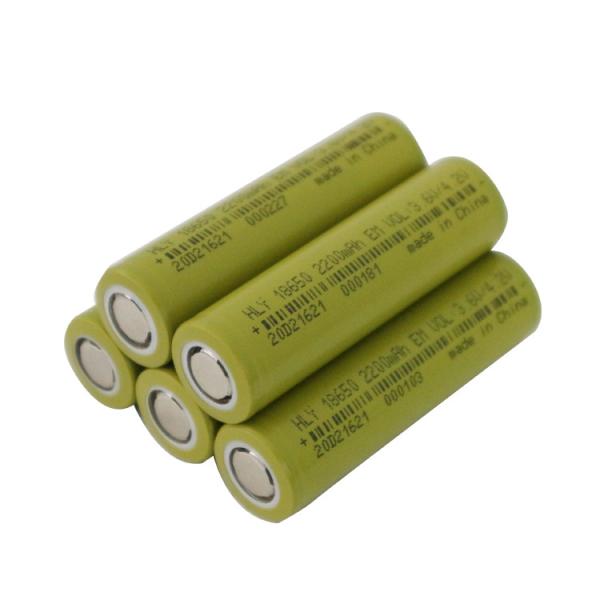

cheaper price and high quality Lithium Ion Battery 3.6V 2200mah
18650 Rechargeable Battery Cells For Balance Bikes
PRODUCT DESCRIPTION
Battery Features:
1. Light, small, high energy density and long cycle life.
2. High safety, meeting international safety standards such as UL,
CE, EN62133, etc.
3. Wide operating temperature range, stable performance under high
and low temperature.
4. A variety of cell types for choice, suitable for many different
product fields.
5. Independent development and design, can be customized as per
customers' producy requirements.
Application:
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden
lamp, high pole lamp |
Battery-operated motor cycle;
Electric motorcycle;
E-scooter | Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile,
motorcycle, railway diesel locomotive, electric locomotive, bus,
etc.) |
EV;
Electric vehicles;
Cell-driven vehicles
(Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) |
Electric bus/Medium bus
(Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy |
| Electric special vehicle: Electric golf car, electric sightseeing
car, electric engineering car, electric sweeper, electric forklift,
police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power
station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc |
Paramenters:
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy | 2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 1C (2200mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body
temperature. Charging and discharging at these conditions will
shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
Packaging and Shipping:
Why Choose Us?
Certificate:
Company profile:
JiangXi Hualiyuan lithium Energy Co.,Ltd,was established in
2013.The company has an industrial park of 23,000 square meters and
more than 100 patented technologies, including 8 invention patents,
more than 100 technical research and development personnel and more
than 200 sets of high-precision instruments. After 10 years more of
rapid development,HYL has become a global competitive high-quality
lithium battery platform company, possessing core technologies and
comprehensive solutions for consumer batteries and power batteries.
Products are widely used in the field of loT and Energy Internet.
FAQ:
Q1. What About After-Sales Service ?
A: Our sales staff and technicians will continue to follow up
customers' feedback on the use effect of battery products, and will
provide professional answers and practical improvement solutions
according to the actual problems raised by customers, and
ultimately achieve mutual growth of customers and supplier.
Q2: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples
are free. Mixed samples are acceptable.
Q3: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q4: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity
for neutral orders.
Q5: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
