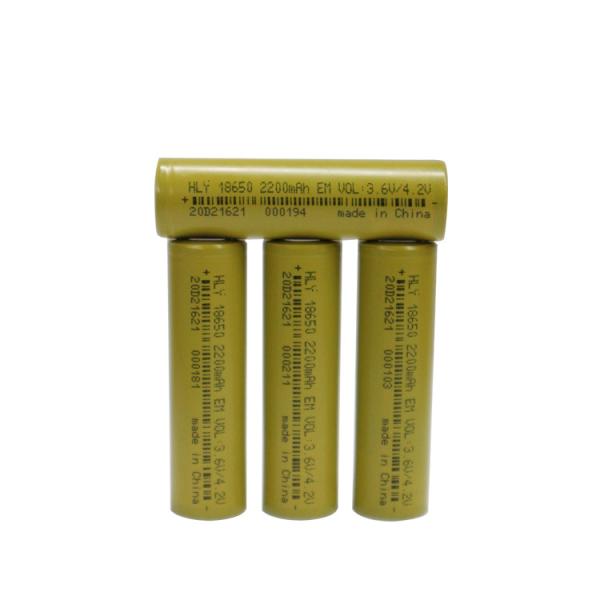

Factory High Rate 2200mah Rechargeable Li-Ion18650 Battery For
Electric Vehicles
PRODUCT DESCRIPTION
Brand characteristics:
1. Long-Life Technology
Based on the balance point design of energy density and cycle
performance, innovation was made in material formula and process to
improve the cycle performance of the product. The cycle life of
26650 ternary power battery reached 1500 times or more than 80%,
which realized the application High cost performance.
2. Safety performance design
Increase the cost, optimize the design of battery separator and
electrolyte, continuously improve the level of safety error
proofing, and effectively reduce the probability of battery safety
problems.
3. Consistency assurance
The comprehensive application of high-density battery technology,
high-voltage battery technology, integrated charging technology,
energy system full equalization technology, new energy and other
life-cycle collaborative technologies has a high technical content.
| Application field of lithium battery |
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden
lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship,
cargo ship, etc.) |
Battery-operated motor cycle;
Electric motorcycle;
E-scooter | Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile,
motorcycle, railway diesel locomotive, electric locomotive, bus,
etc.) | Power supply for aircraft (power supply for large civil aircraft,
commercial aircraft, helicopter, fighter aircraft and other flight
instruments) |
EV;
Electric vehicles;
Cell-driven vehicles
(Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite,
rocket, missile, etc.) |
Electric bus/Medium bus
(Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment
(tank, armored vehicle, military large armored vehicle, civil large
excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy | 2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 1C (2200mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body
temperature. Charging and discharging at these conditions will
shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
FAQ:
Q1: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples
are free. Mixed samples are acceptable.
Q2: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q3: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity
for neutral orders.
Q4: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
Q5: What about the lead time?
A: Sample needs 1 day, neutral order of mass production needs 3-7
working days. If OEM of bulk orders, it would be about 7~15 days.
