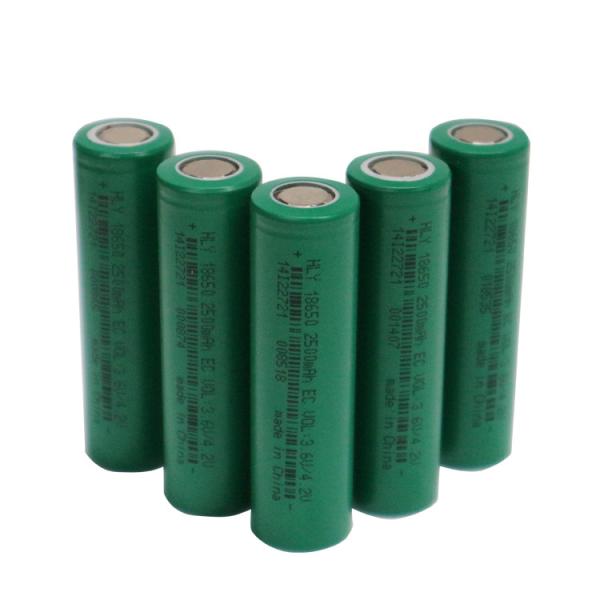

Factory great Price 18650 Li-Ion Battery Pack 3.6 V 2500mah
Rechargeable Lithium Battery Cells For electric products
PRODUCT DESCRIPTION
Brand characteristics:
1. Long-Life Technology
Based on the balance point design of energy density and cycle
performance, innovation was made in material formula and process to
improve the cycle performance of the product. The cycle life of
26650 ternary power battery reached 1500 times or more than 80%,
which realized the application High cost performance.
2. Safety performance design
Increase the cost, optimize the design of battery separator and
electrolyte, continuously improve the level of safety error
proofing, and effectively reduce the probability of battery safety
problems.
3.Consistency assurance
The comprehensive application of high-density battery technology,
high-voltage battery technology, integrated charging technology,
energy system full equalization technology, new energy and other
life-cycle collaborative technologies has a high technical content.
Application:
1. Storage: solar and wind complementary stored energy, solar
streetlights, energy storage systems, household energy storage,
outdoor energy storage.
2. Power Supply: communication base station power supply, utility
power supply, communication industry, emergency power.
3. EV: pure electric car, pure electric bus, hybrid electric
vehicles, hybrid electric bus, recreational vehicles, chill cars,
electric wheelchair, electric motorcycle, electric bicycle, balance
bikes, electric scooter, electric skateboard, grass trimmer or lawn
mowers.
4. Home electronics: electric tool or power tool, mobile audio,
electric shaver, POS machine, bright flashlight, mobile power
supplies, electronic nebulizer, unmanned aerial vehicle, etc.
And other backup power systems etc.
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2500 mAh@0.5C |
| Minimum capactiy | 2450 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1250mA) |
| Standard discharge current | 1C (2500mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body
temperature. Charging and discharging at these conditions will
shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
Packaging and Shipping:
Exhibitions:
Partner relationship:
Company profile:
JiangXi Hualiyuan lithium Energy Co.,Ltd, was established in
2013.The company has an industrial park of 23,000 square meters and
more than 100 patented technologies, including 8 invention patents,
more than 100 technical research and development personnel and more
than 200 sets of high-precision instruments. After 10 years more of
rapid development,HYL has become a global competitive high-quality
lithium battery platform company, possessing core technologies and
comprehensive solutions for consumer batteries and power batteries.
Products are widely used in the field of loT and Energy Internet.
