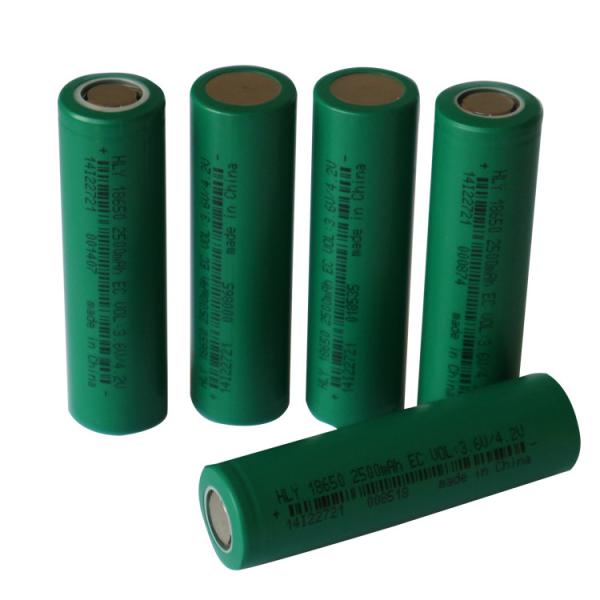

Best Price 18650 Li Ion Battery Cell 3.6v 2500mAh For Electric
Power Systems
PRODUCT DESCRIPTION
Battery Characteristic:
1. Light, small, large capacity, high energy density and long cycle
life.
2. High safety, over charge and over discharge protection, meeting
international safety standards, such as CE, RoHS, UN38.3, MSDS,
FCC, BIS etc.
3. Wide operating temperature range, stable performance under high
and low temperature.
4. A variety of battery cell types for choice, suitable for many
different product fields.
5. Independent research, design and development, can be customized
as per customers' product requirements.
| Application field of lithium battery |
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden
lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship,
cargo ship, etc.) |
EV;
Electric vehicles;
Cell-driven vehicles
(Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite,
rocket, missile, etc.) |
Electric bus/Medium bus
(Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment
(tank, armored vehicle, military large armored vehicle, civil large
excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2500 mAh@0.5C |
| Minimum capactiy | 2450 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1250mA) |
| Standard discharge current | 1C (2500mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body
temperature. Charging and discharging at these conditions will
shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
Why choose us?
1. We founded in 2013, have about 10 years experience in the field
of Lithium Ion Battery.
2. We have 400 professsional workers and 20 R&D engineers.
3. We have an industrial park of 23,000 square meters and more than
100 patented technologies and more than 200 sets of high-precision
instruments.
4. We got 8 China excellent patent awards.
5. We cooperate with Chinese Academy of Sciences(CAS) to research
and develop new product Sodium Ion(Na+).
FAQ
Q1: Are you a factory or company?
A: Yes, we are a factory with 10 years experience, specialize in
18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples
are free. Mixed samples are acceptable.
Q3: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q4: Do you have MOQ for your batteries?
A: MOQ of OEM orders is 10,000 pcs. We can also accept small
quantity for neutral orders, moq of 18650 battery is 400 pcs, and
26650 battery is 192 pcs.
Q5: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
Q6: What about the lead time?
A: Sample needs 1 day, neutral order of mass production needs 3-7
working days. If OEM of bulk orders, it would be about 7~15 days.
Q7: What about the quality of your battery?
A: We only produce safe, reliable and longetive battery, all
products have passed the CE, RoHS certifications etc.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you. If you meet any
problem, please don't hesitate to contact us.
